Official data verified

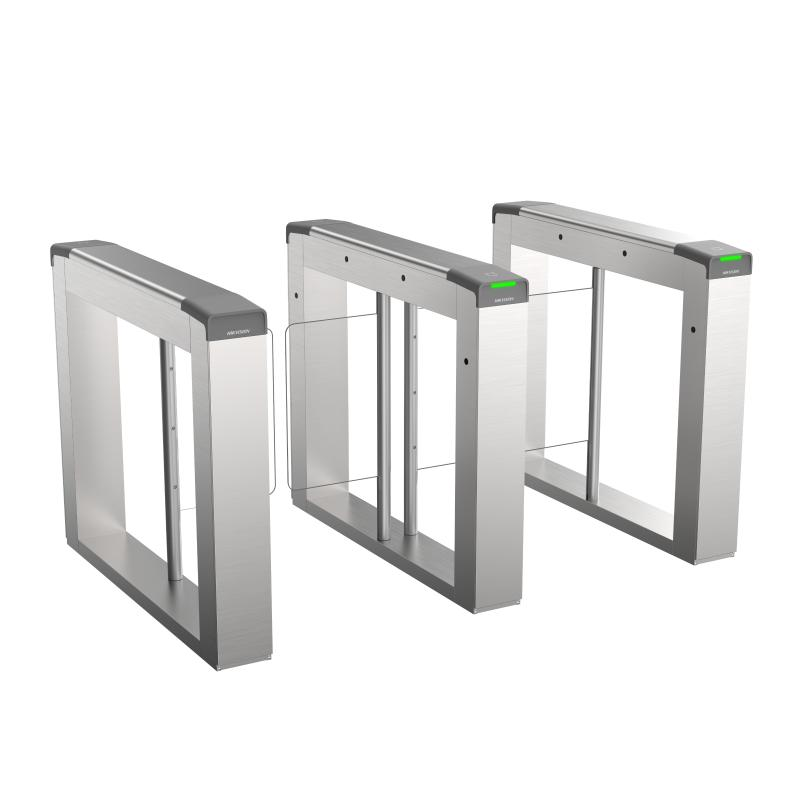

DS-K3B211LX-LR/Pg(O-STD)
Hikvision
Contact support for the sales price
Motor
Brushless motor
MCBF
≥ 3 million times
IR light detectors
4 pairs
Official data verified
Official specifications
- Product
- Value Swing Barriers
- Model
- DS-K3B211LX-LR/Pg
- Motor
- Brushless motor
- MCBF
- ≥ 3 million times
- IR light detectors
- 4 pairs
- Fire alarm input
- 1
- Access controller
- Not supplied
- Throughput
- 20 to 60 persons per minute
- Lane width
- 550 mm to 900 mm
- Barrier material
- 8 mm acrylic glass
- Pedestal material
- SUS304 stainless steel
- Power consumption
- Standby 30 W; working 80 W; peak 120 W
- Power supply
- 100 to 240 VAC, 50 to 60 Hz
- Working temperature
- -20 °C to 65 °C (-4 °F to 149 °F)
- Working humidity
- 10% to 95% (no condensing)
- Application environment
- Indoor and outdoor
- Dimensions
- 1200 mm × 218 mm × 1023 mm (without package)
- Weight
- Left net 33 kg / gross 56 kg; right net 36 kg / gross 60 kg
